Engineered specifically for granular fertilizer materials, the AF-50K integrates enhanced protection, optimized mechanical structure, and upgraded adaptive algorithms, ensuring reliable operation even in corrosive, dusty, and high-load environments.
Built for Fertilizer: Stronger Protection, Longer Service Life
The AF-50K features a full stainless-steel structure with a blasted surface, significantly improving corrosion resistance and making it ideal for chemical and fertilizer plants. Key components are comprehensively protected against dust, moisture, and foreign-object intrusion—extending service life while reducing maintenance costs.
- Full stainless-steel construction with blasted finish for superior corrosion resistance.
- Oil-sealed gearbox treatment to enhance protection level and operational reliability.
- Protective covers for the load cell, motor, and solenoid valve.
- Special cable-entry design to prevent dust and foreign matter from entering.
Optimized Structure for Faster, More Stable Feeding
To handle the unique flow characteristics of granular fertilizer, the AF-50K adopts a specially designed feeding hopper structure, significantly improving feeding speed and consistency. At the same time, the load cell connection point has been structurally optimized by adjusting its floating direction, ensuring stable weighing performance even at high operating speeds.

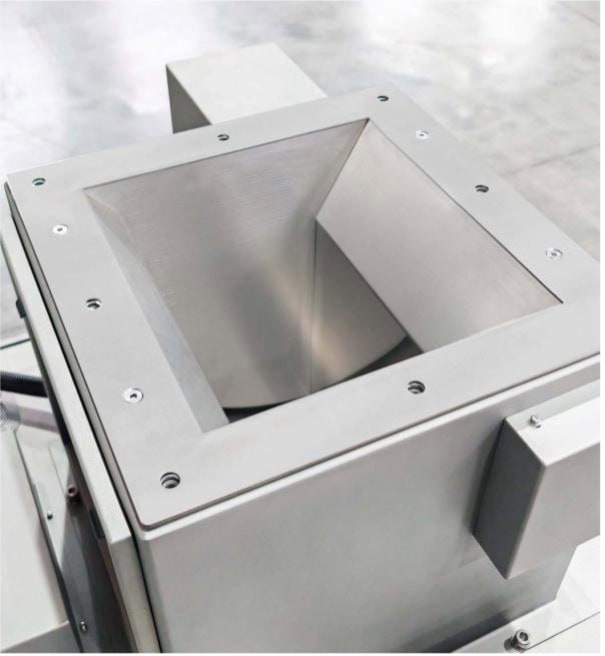

- Special feeding hopper design for smooth, high-speed, and stable material flow.

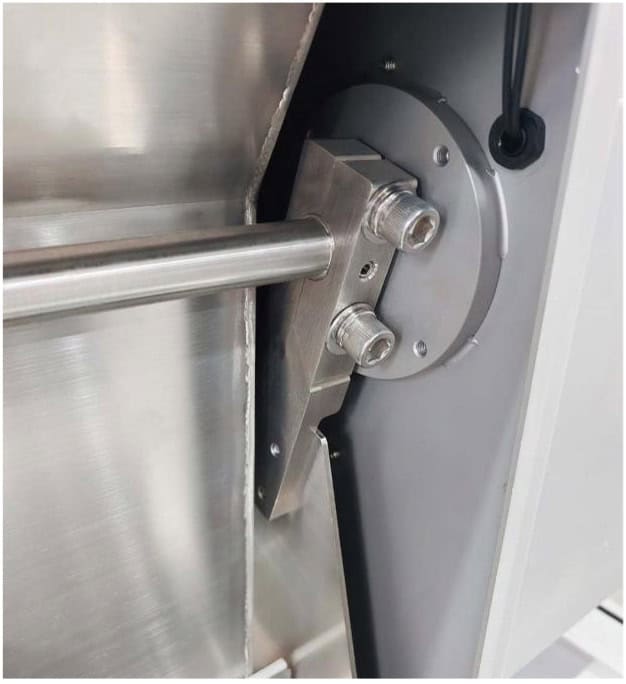

- Optimized load cell connection for enhanced stability during rapid filling(Top speed: 1500pcs/min).
- Dust-proof film protection on the load cell, improving protection without compromising weighing accuracy(Best accuracy: ±10g).
Intelligent Algorithms for Precision and Efficiency

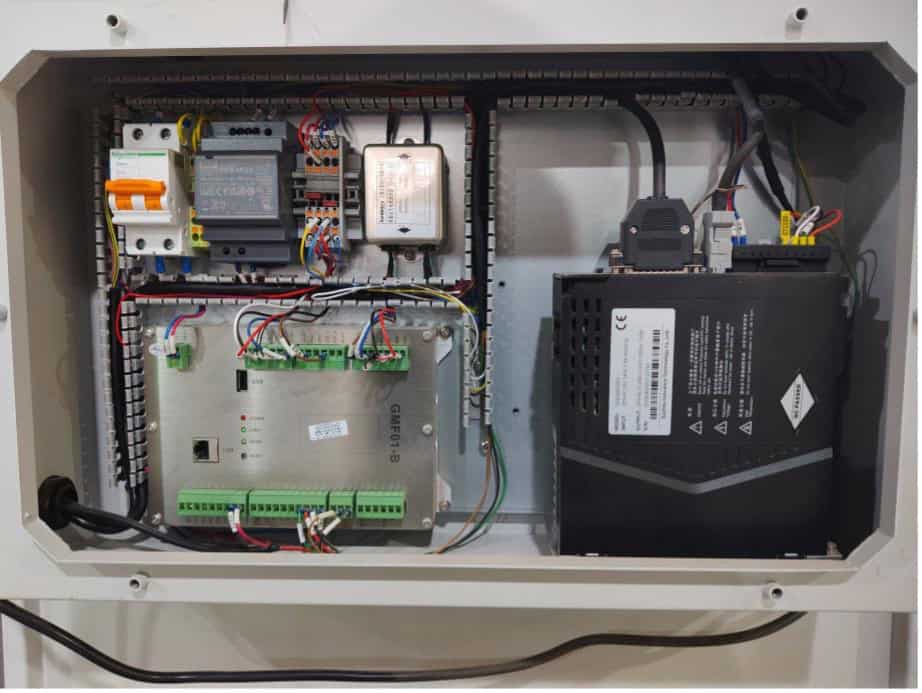

At the core of the AF-50K are the General Measure weighing controller and the upgraded adaptive weighing algorithm, developed to dynamically adjust to material flow changes in real time. This ensures fast response, precise control, and consistent accuracy, even under high-throughput conditions.
- Upgraded adaptive algorithm for fast, accurate, and stable weighing.
- Designed to maintain precision across varying material properties.
- Ideal for continuous, high-efficiency fertilizer bagging operations.
Performance Specifications
The AF-50K is engineered to balance speed and precision, meeting the demanding requirements of modern fertilizer packaging lines:
- Weighing range: 10–50 kg
- Accuracy range: 10–25 g
- Top speed: up to 1500 BPH
This performance combination enables manufacturers to achieve high output without sacrificing weighing accuracy, even in continuous production environments.
Optional Components for Greater Flexibility and Control
To further enhance operational efficiency and adaptability, the AF-50K can be equipped with a range of optional components tailored to fertilizer packaging applications.

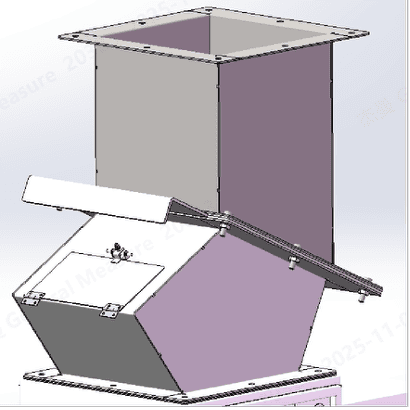

Infeeding Pipe
- Designed to improve process continuity and maintenance convenience:
- Provides a buffering function to ensure stable and continuous material flow during packaging
- Allows material flow to be cut off, enabling safe and efficient maintenance of the packing scale
- Equipped with an observation window for real-time monitoring of material conditions

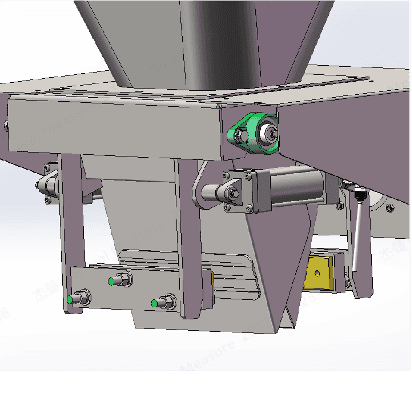

Bag Clamp
- Engineered for reliable bag holding in dusty and high-load environments:
- Gear surface design delivers strong and stable gripping force
- Adjustable opening size to fit packing scales of different dimensions
- Controlled by a non-contact proximity switch for reliable operation
- Integrated dust removal structure to prevent dust intrusion and ensure long-term stability
The Ideal Bagging Scale for Fertilizer Production
Combining robust mechanical design, comprehensive protection, and intelligent control, the General Measure AF-50K bagging scale sets a new benchmark for granular fertilizer packing. It is the ideal solution for manufacturers seeking higher productivity, improved accuracy, and long-term operational reliability in demanding industrial environments.
AF-50K bagging scale — Precision engineered to withstand corrosion, built to perform at speed.
