The ZD 5 FB flat-tray feeder is a dependable solution for feeding rates below 100 g/h in Three-Tec’s portfolio. As the smallest twin-screw flat-tray feeder in our range, it’s ideal for poorly flowing powders. With a screw diameter of just 5 mm, it can deliver as little as 5 g/h with ease.
High feeding consistency of the feeding device used is crucial for accurate, continuous feeding results. If a feeding device can already achieve high feeding consistency in volumetric mode without discharge or flow aids, only minimal adjustments are required in gravimetric mode, which significantly increases feeding accuracy.
AMW GmbH required a feeding solution for quantities below 50 grams per hour. In trials with PLGA polymer powder, AMW compared three feeders from different suppliers, recording three data points for each of three motor-control settings. All tests were run purely volumetrically, without weight-based control.
The test results clearly show that the ZD 5 FB flat-tray feeding device from Three-Tec outperformed other models in terms of low dispersion, making it the ideal choice for the most demanding precise feeding applications.
ZD 5 flat-tray feeding device from Three-Tec

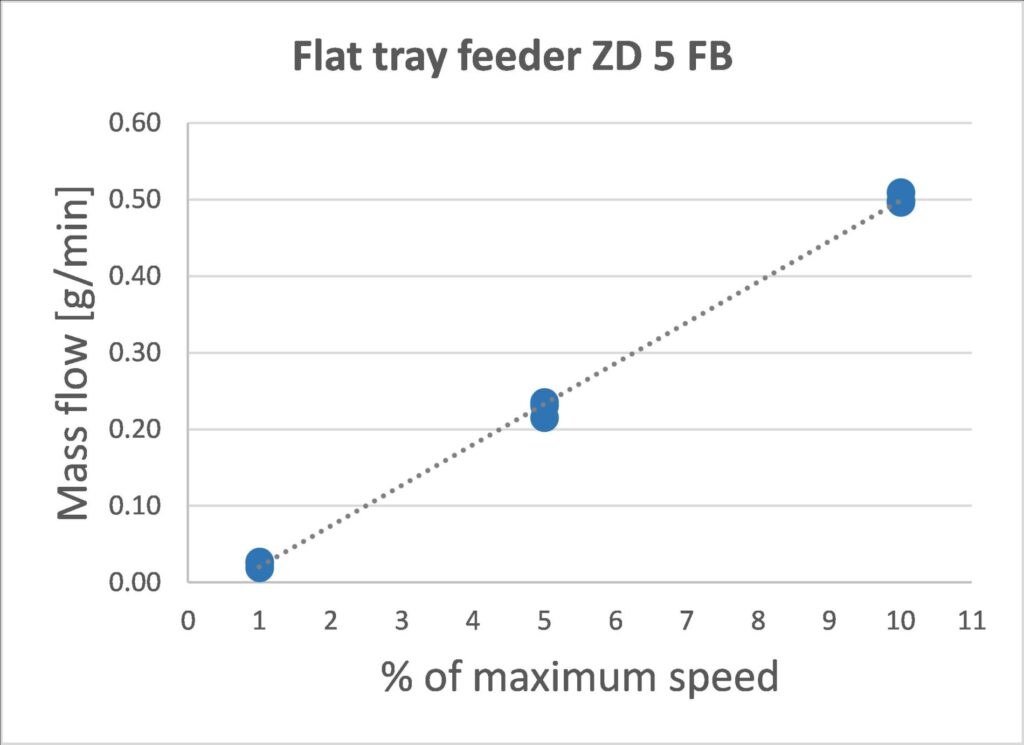

The ZD 5 FB measurement results show very good repeatability at the measuring points

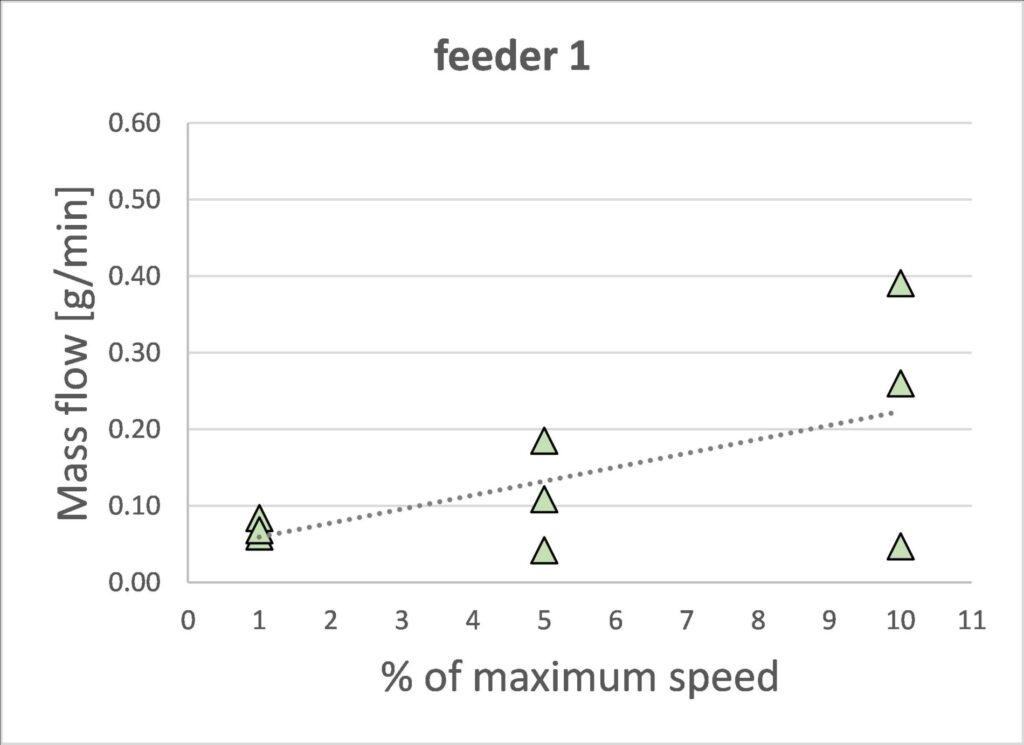

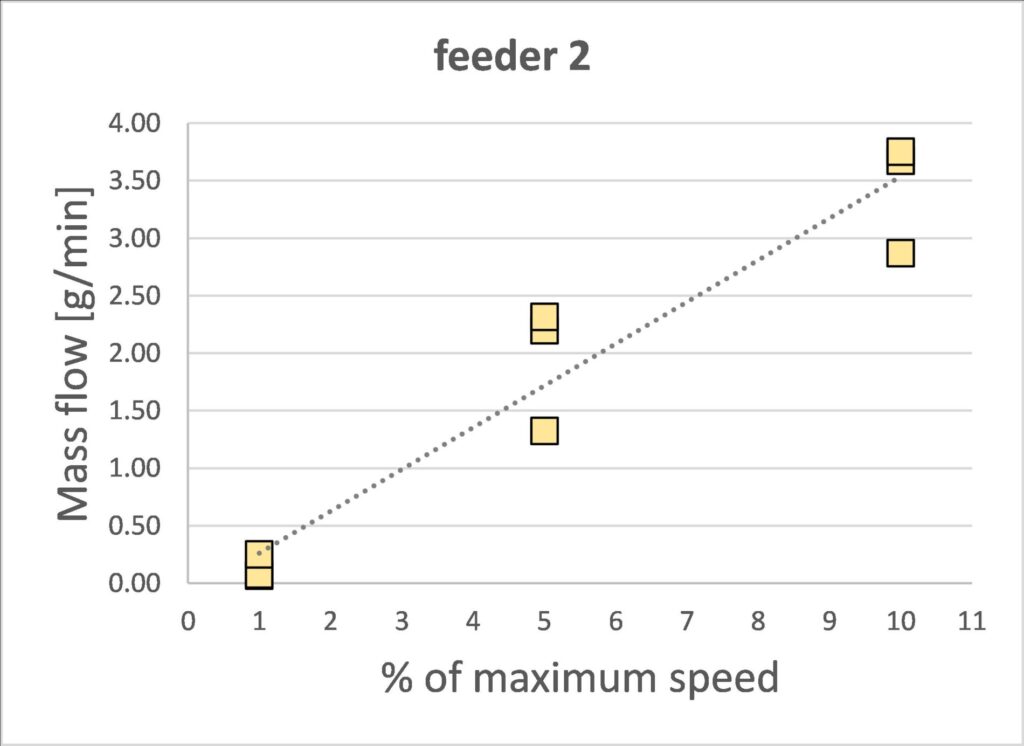

Feeding devices from other suppliers have a much higher variation in the different measuring points, resulting in poor repeatability.
((Box 1))
Three-Tec is a specialist in the development and production of feeding systems, extruders, and process equipment for process technology. We serve demanding industrial sectors worldwide with a comprehensive portfolio of high-quality products, complemented by expert advice and fast, reliable, and tailored service. With in-house development and manufacturing, we ensure the highest quality standards, maximum flexibility, and the ability to create customized solution. All our products are Swiss Made: They are developed and manufactured at our site in Seon, Switzerland. In our test and application laboratory, we offer our customers the perfect environment for optimizing and developing existing and new processes with their specific materials.
((Box 2))
AMW GmbH is a biopharmaceutical company specialising in the development and manufacture of biodegradable drug delivery systems. The company has particular expertise in extrusion technologies for the manufacture of implants for precise and controlled drug release. In addition to its own long-term implants based on GnRH agonists, AMW develops and manufactures innovative systems for partners. The solutions are designed for therapeutic efficiency and cost-effectiveness and are based on robust, scalable processes. In collaboration with leading technology partners, AMW drives formulation development and prototype manufacturing, with seamless scale-up into GMP-compliant production.
