Unique features include tool-less, rapid belt removal for frequent cleaning cycles, an IP69K stainless steel load cell manufactured to withstand high pressure spray, a shaft mounted, wash-down drive system for simple power transmission, and product contact surfaces with 316 stainless steel.

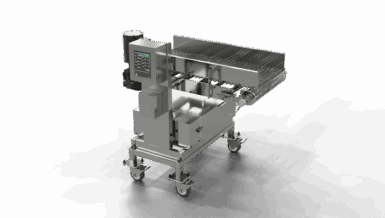

The DEA Open Frame Weighbelt Feeder provides weight controlled feeding, weight indication and totalization for fragile materials such as cereals, snack foods, kibble, fruits, and pasta. Models with 12” and 24” belt widths, BIC (belt weight influence compensation), and accuracies of ± 0.25% to 1% of set rate sigma are available.
A v-profile belt guide provides reliable tracking and minimal hardware requirements while a gravity-assist head pulley scraper and an internal plow automatically clean both sides of the belt. Feed rates up to 2,660 cubic feet per hour are achievable with the DEA Open Frame Weighbelt Feeder.
