Next level High Grade Trough Shape Conveyors.
Trough-shape conveyors offer a lot of advantages like full access from above thru large covers and are good for both high and low capacity conveying.
A few of many Features:
- Hygienic & Custom Product Zone Finish.
- Fully polished or partly polished to specified roughness & finish, including roughness documentation.
- Large radius designs (typically R10 mm).
- Easy-openable and large top covers for fast and easy access.
- Covers may be removeable or hinged – with and without stainless gas-springs to ease the opening and closing.
- Covers are closed by quick-locks ensuring a fully dust- or water tight closure.
- Removeable Gaskets for separate gasket cleaning or replacement.
- Gaskets are typically mounted on the covers section and thereby move away from operator-zone when covers are opened.
- Conveyors can be designed with integrated CIP-nozzles for automatic CIP process.
- Sturdy framework with an open profile design (no hollow tubing) and no-level solution – or tubular type framework according to requirements.
CIP-Nozzles:
Alvibra’s CIPnozzles comes in various executions, but they all offer a rotational impact-cleaning jet-stream for best cleaning also for sticky and difficult products.
Nozzles stays in place during (pop-in) and after (pop-out) CIP-process, thru the retractable and vibration-resistant rotating nozzle head.
Depending on type, CIP-nozzles open by water pressure or by control-air – and closes by spring or control-air.
Hygienic Conveying at its best:
Alvibra’s CIPnozzles offer rotational
Nothing beats a smooth and seamless stainless product contact zone and Alvibra’s Vibratory Tubular and CIPable Conveyors are chosen if diary powders needs to be transported from A to B and at the same time offer food-safety and superb sanitation.
No belts, cleats, wire-cables or other points and corners – it is just a smooth stainless rounded surface.

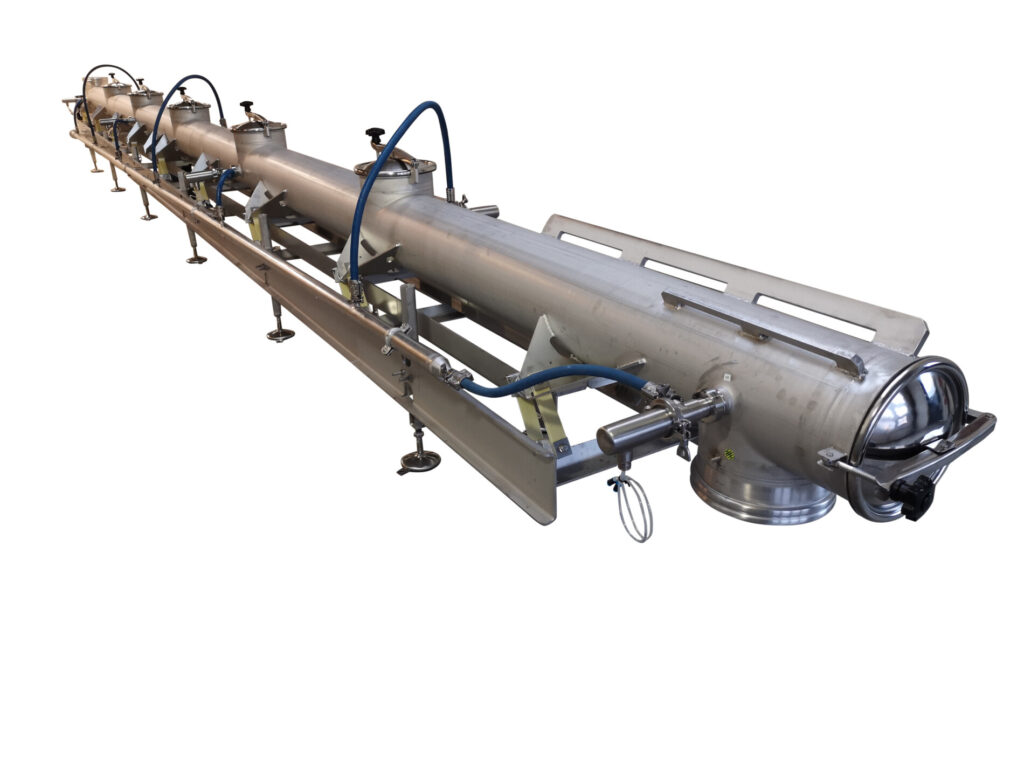

Tubular conveyors are good for smaller and medium capacity requirements for fully enclosed conveying of powders and granules.
Inspection openings are typically integrated in each end of the tube, however may also be strategically positioned along the conveyors upper side.
Conveyors are always custom fit for the purpose and careful considerations of capacity and application requirements. And BTW – Compared to other suppliers, Alvibra also offer longer vibratory conveying distances thru 1 single conveyor.
Reversible or dual-directional conveying:
In some applications products needs to go either right to one process – or left to another process. This is doable with one vibratory conveyor too – no in all but at least in far most cases. A triple or quadra motor design ensure you can run in both directions.
Alvibra in short:
Fast moving and easy to work with company, with 30+ years of experience within dairy screening and conveying – and much more.
Certified by the Danish Veterinary & Food Administration with full material traceability and required certificates.
Designed and manufactured in Denmark under high environmental focus.
