An important aspect for the effective function of pressure relief valves is the design and layout of the entire pressure relief system, consisting of the valve itself as well as the inlet and outlet pipes. The inlet pipe plays a central role by carrying the medium to the pressure relief point. It must not become blocked and must be designed to ensure efficient pressure relief.
The outlet pipe, on the other hand, ensures the safe discharge of the depressurised medium to a safe location. It must be dimensioned and designed in such a way that it can effectively cope with the resulting pressure drop, the resulting reaction forces are absorbed and the process medium is safely discharged from the system. If the process medium is such that venting into the free atmosphere is possible, special attention must be paid to the end of the discharge pipe in order to ensure the unrestricted function of the safety valve.
Rain, snow, leaves or animal nests – there are many reasons for a blocked or impaired discharge pipe. This creates an incalculable risk for the process to be protected. Effective pressure relief is no longer guaranteed in an emergency. REMBE Tube-End-Protection (TEP for short) effectively protects the open end of the discharge pipe against weather and environmental influences, thus ensuring unhindered pressure relief at all times.
The REMBE TEP is a protective cover made of breathable yet robust and waterproof PE fleece that fits the discharge pipe perfectly thanks to the integrated elastic band. This prevents leaves or animals from entering or clogging the discharge pipe.

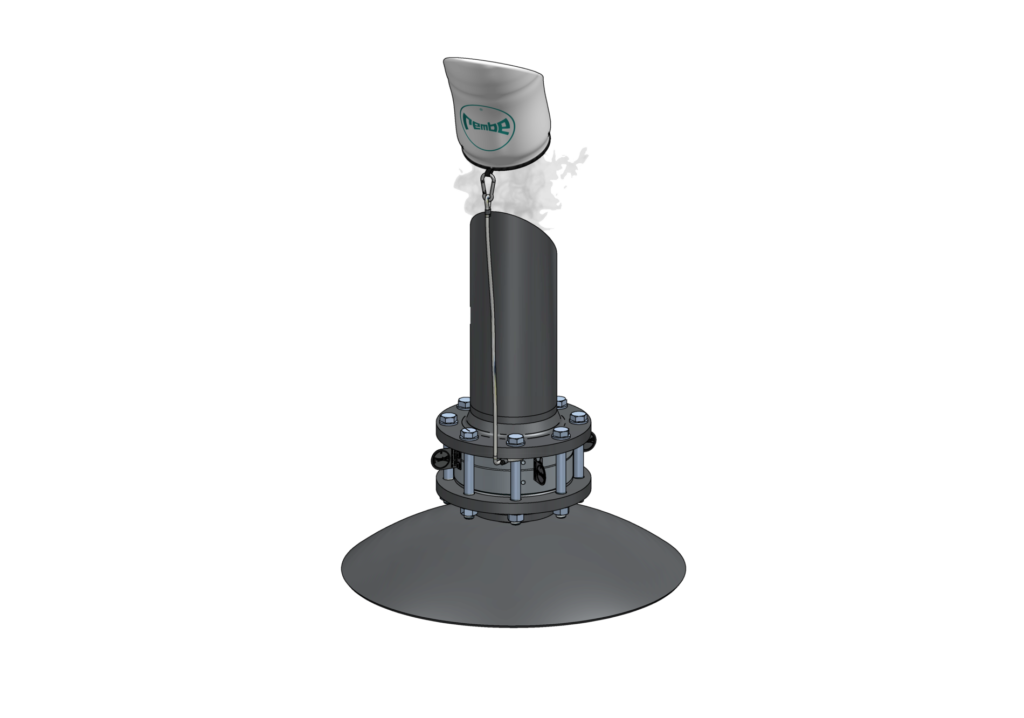

A 45° bevel allows rainwater to run off, preventing water pockets from forming. Thanks to the breathable material, the space between the safety fitting and the protective cover is always depressurised, so it is not necessary to monitor the gap. When a safety device is activated and releases into the discharge pipe, the TEP detaches from the pipe and tears apart with minimal fragmentation as it flies away. Premature and uncontrolled slipping of the TEP due to wind is prevented by the tight and elastic rubber band. A positive side effect is that the TEP makes it easy to visually recognise when the safety armature has been triggered. An optional fastening set, consisting of a retrieval rope with integrated carabiner, prevents the canopy from flying away in an uncontrolled manner. The fastening set is reusable and does not need to be replaced after triggering.
The advantages at a glance:
- Effective protection against weather and environmental influences
- Cost-efficient thanks to quick and easy installation
- Made of PE fleece – no perfluorinated and polyfluorinated alkyl compounds (PFAS)
- Visual detection when a safety device responds
- Breathable – prevents pressure build-up and minimises condensation
