Designed for hygienic performance and maximum uptime
The Fast Clean HDMF and BSMF rotary valves are specifically developed for applications requiring frequent cleaning and inspection. Their hygienic construction, polished surfaces, and minimised dead zones reduce product retention while supporting consistent material flow.
Available with both single and double end plate openings, the valves provide easy access for thorough cleaning, enabling faster turnaround times and significantly reducing production interruptions. Their robust design ensures suitability across a broad range of industries, from food and dairy to pharmaceutical and chemical processing.
RotaLign – Fast, safe and tool-free maintenance
A key innovation is the patented RotaLign rotor alignment system, now integrated across the entire Fast Clean range. This self-locating rotor technology simplifies reassembly while eliminating the need for manual adjustments or clearance checks.
Operators benefit from:
- Tool-free access to the rotor
- Simplified cleaning procedures
- Faster maintenance cycles with minimal downtime
The design also facilitates easy bearing replacement with little or no adjustment required, improving both safety and operational efficiency.

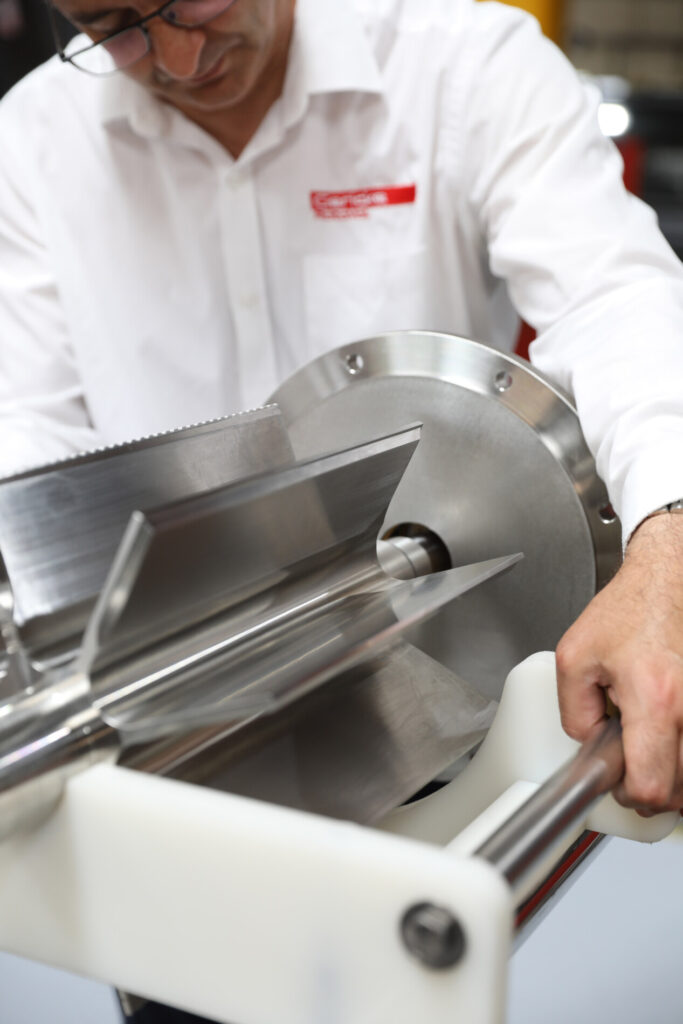

Scratches and damages to internal parts? Not with these valves
To further safeguard product integrity, the valves incorporate a tapered bore and matching rotor design with integrated guide rails. This ensures smooth, controlled rotor removal and reinsertion without risk of scratching or damage.
By eliminating potential contamination sources during maintenance, the design supports consistent product quality, operational safety and long-term equipment reliability.
