Typical applications include biofuel for boilers for CHP or power generation applications, syngas production, and processing wood into intermediate products, such as charcoal briquettes and wood pellets.
Benefits of Moisture Control:
- Consistent quality of the woodchips
- Ensure correct moisture for storage, reducing the risk of spoilage
- Increased control of the final product
- Lower wastage and product degradation
- Direct, continuous, real-time control of the burning process
- Optimised combustion
Where to Measure Moisture?

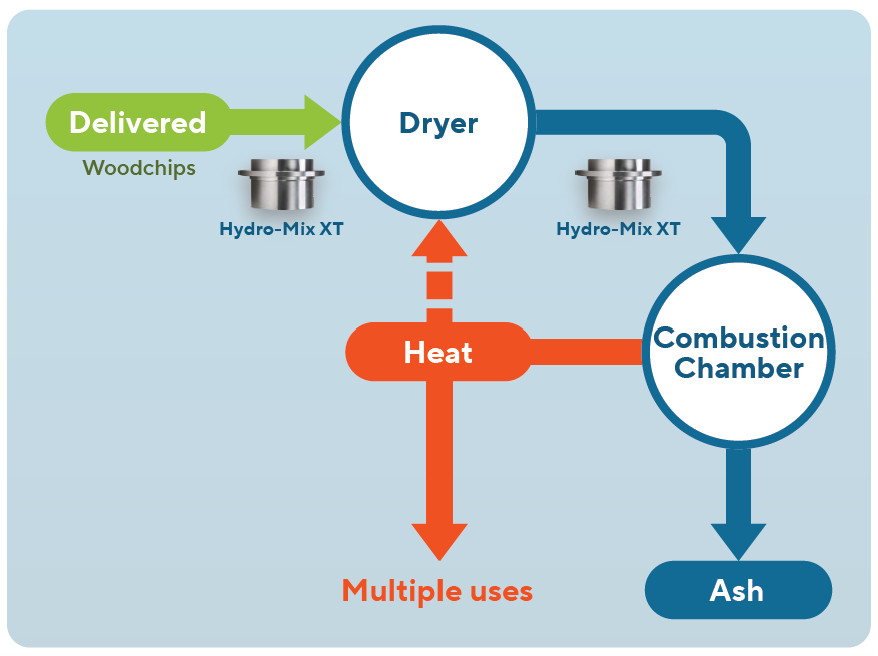

After the woodchips are delivered, they are dried before entering a Combustion Chamber where they are burnt to generate heat which has multiple uses (e.g. hot water or steam for power generation).
The excess heat from the process is also fed back into the dryer to reduce the energy input.
Common measurement locations are:
- Dryer Input – Measuring moisture as the material enters the dryer enables control of the operating temperatures, maximising its efficiency. Rejecting wet material also avoids batch failures caused by excess steam production.
- Dryer Output – Measuring the material leaving the dryer allows a feedback control loop to be set up, resulting in a stable output moisture and optimising the process in the Combustion Chamber.
The dryer process control loop uses the error between output and a pre-set target value to adjust for unknown variables.
Recommended Installation

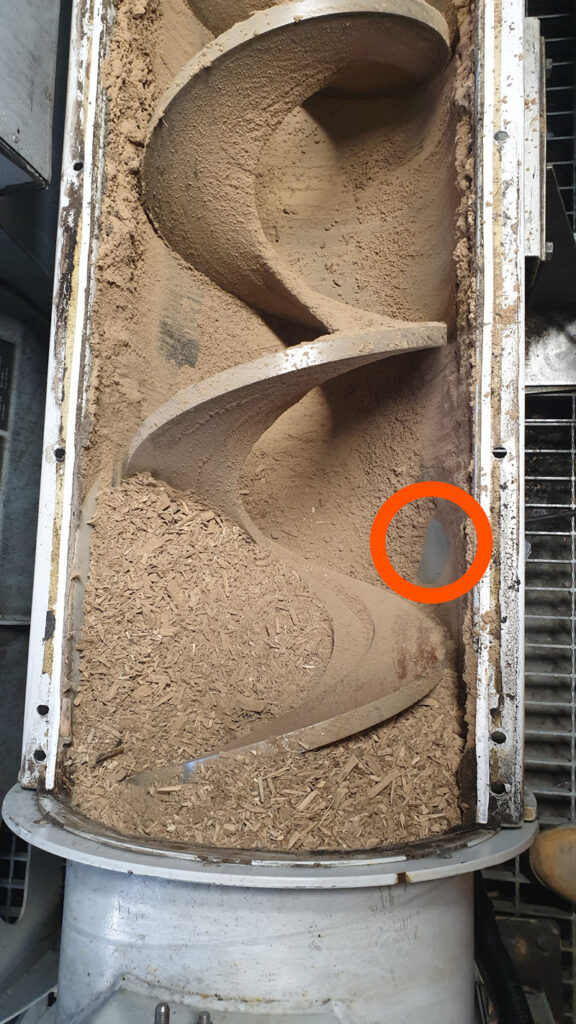

Figure 2 shows the recommended installation point for a sensor measuring moisture in woodchips in the screw conveyor.
The sensor is installed at 30° from the underside of the screw, just before the sampling point. It is essential that the sensor is located so that the ceramic disc is continuously covered by at least 100mm of material.
Conclusion
Installing moisture measurement sensors in woodchip plants can maximise efficiency and prevent wastage/degradation.

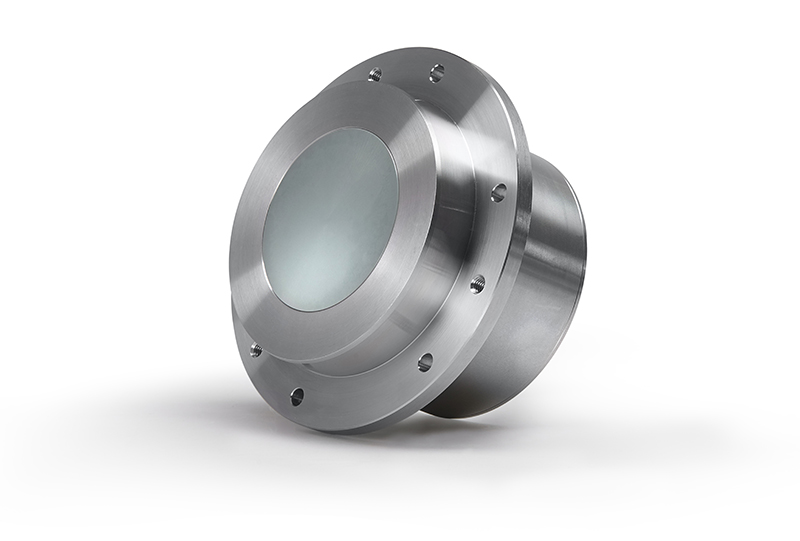

The Hydro-Mix XT and the Hydro-Mix XT-EX for explosive atmospheres are purpose-built, robust, and ideal solutions for woodchip applications. These sensors can significantly increase profitability through waste reduction, yield maximation and efficient use of energy.
