Material Master PowerFill® Bulk Bag Fillers

Material Master PowerFill® Bulk Bag Fillers
23 Oct 2020  |
Designed for high, medium, and low-volume applications, the PowerFill® product line provides unrivaled bulk bag filling solutions for a wide array of companies in the food, chemical and pharmaceutical industries.

New PowerFill® filling systems offer ergonomic operation, automation, and robust construction at an affordable price. With your needs front and center, we put our decades of experience to work taking costs out of these powerful systems – without compromising any of the advantages you count on. The robust line of PowerFill® Bulk Bag Fillers provides the durability, high performance, and reliability to get your dry powders and bulk solids to your customers safely, efficiently, and more cost-effectively.

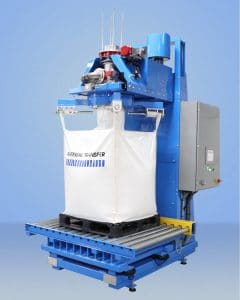

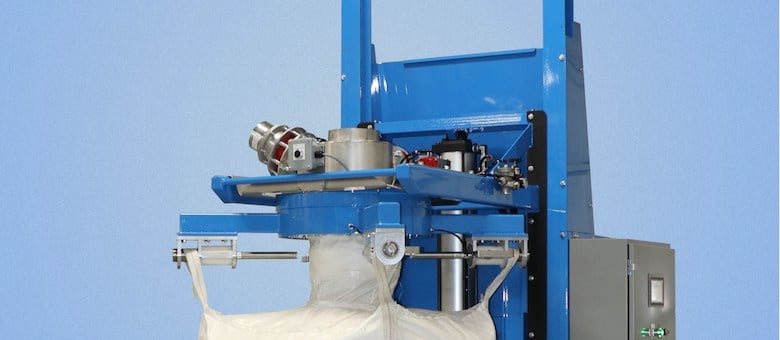

The Powerfill® Pro Bulk Bag Filler is designed to handle high-volume production. This line includes an optional hang weigh system with an exclusive rotating and traversing bag support carriage for maximum filling efficiency and minimal operator effort. The bag support carriage and fill head lower to a programmed operator height, extend towards the operator, then rotate for reach-free bag strap and bag spout connection. From the “load position”, an operator can safely connect an empty bag while standing on the floor in front of the filler unit in approximately 20-30 seconds.

Once the bag spout is sealed, the fill carriage returns to the “fill position.” The bulk bag is automatically inflated, filled, densified, and weighed with the push of a button. Once the filling cycle is complete, the bag inlet spout and straps automatically release, the fill head raises, and the filled bag is removed via an optional powered roller conveyor.

Units are custom designed for your application requirements and can include powered in-feed and out-feed conveyors, check scales, pallet dispensers, or slip sheet dispensers.

The Powerfill® Select Bulk Bag Filler is designed for medium-volume filling applications. This line features a pneumatic Power-Lift™ system for powered fill head height adjustment and an optional Easy-Load™ rotary bag hanger system for maximum filling efficiency and reduced operator fatigue. With select options, the bag support carriage and fill head can lower to a programmed operator height, then rotate for “reach-free” bag strap connection. From the “load position”, an operator can safely connect an empty bag while standing on the floor directly in front of the unit.

Once the bag spout is sealed, the bulk bag can be automatically inflated, filled, and weighed with the push of a button. Once the filling cycle is complete, the bag inlet spout and straps automatically release, the fill head raises, and the filled bag can be removed. The Powerfill® Select is an extremely customizable filler at an affordable price while offering additional options to customize it to your application.

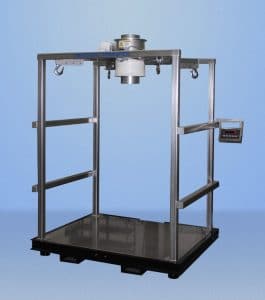

The Powerfill® Limited Bulk Bag Filler is designed to handle low-volume filling and is available with a wide range of options. This line includes a fill head with an inflatable spout seal and dust vent port to ensure the bag fill spout stays in place and reduce the amount of product that enters the facility during the filling process. Filler frame includes adjustable manual straphangers for square or rectangular bags and features manual frame height adjustment to accept a wide range of bag sizes. Common upgrade options include inlet valves and scale systems programmed for gain-in-weight filling.

Call us today to learn what we have done to lower our manufacturing costs, deliver the standards of excellence you expect, and pass the savings on to you.
